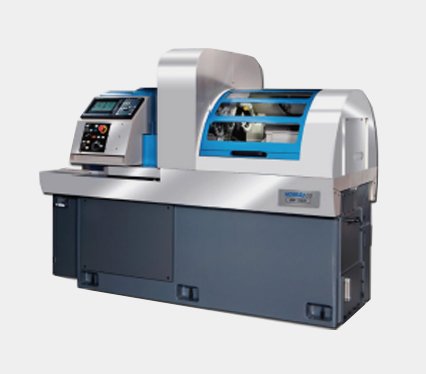

CNC AUTOMATIC LATHE
NN-16SB7
- Specialized for complicated shape parts
- Slant type tool post for easy chip removal
- Slotting machining on sub-spindle (option)

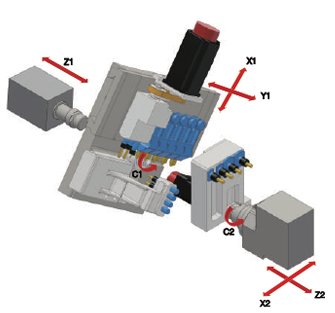

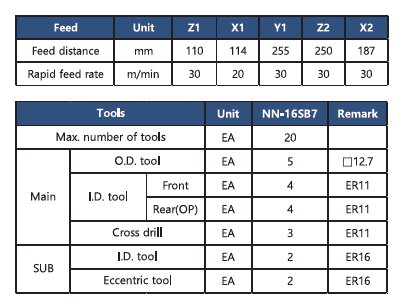

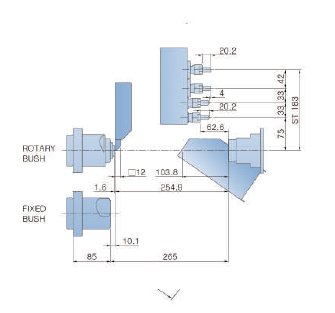

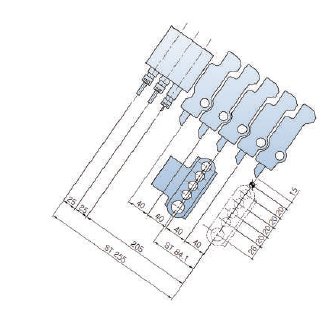

TOOL LAYOUT
CNC AUTOMATIC LATHE
Dovetail structure
The rigidity of NOMURA DS machine is enhanced as its structure contacts the surface of both sides.
Hand scraping
The weighty tool post is glided smoothly by our master artisans and high precision is enhanced as the result.
Dovetail structure
Machine vibrations is absorbed and machining tolerance affected by the temperature change of cutting oil can be minimized as temperature turning is enacted with coolant tank located in the casting bed.

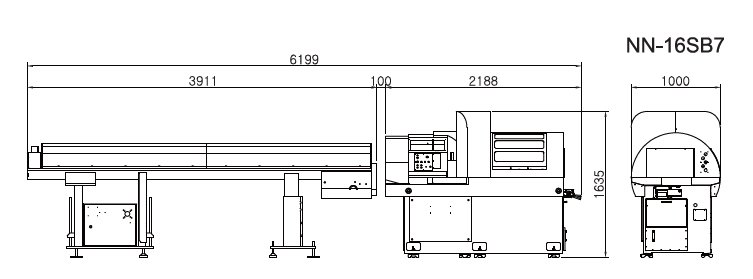

FLOOR LAYOUT
