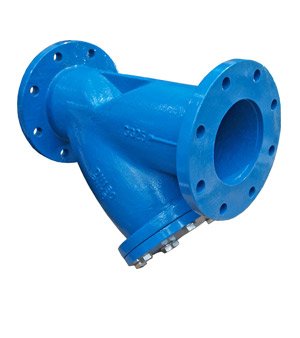

Y-Strainer is used to strain dirt particles from fluid in pipelines and provide inexpensive protection for costly pumps, meters, valves, traps, turbines and compressors.
Face to Face in accordance to: DIN 3202-1 F1 (EN558-1 Series 1)
Maximum Working Presure PFA: 16 bar / PN16
Working temperature: Maximum +80°C
Certification: Hygienic Certificate PZH
Flange Type: EN 1092-2 PN10 & PN16
Coating: 300µm FBE coating, external and internal
Installation: Horizontal, Vertical - assembly in vertical or skew position is possible only in case
medium flow from up to down
Application: To protect water installation.
All particulate solids higher than 1.5mm (DN40-150) and 3mm (DN200-400) are cleared.
Design Feature :
- Fitted with a drain plug for easy routine cleaning, or for adaptation of a blow-o. valve
- All parts with chemical resistance against corrosion, strainer screen from stainless steel
- Full flow area.
Description :
Body : Ductile Iron EN-GJS-500-7
Bonnet : Ductile Iron EN-GJS-500-7
Strainer Screen : Stainless Steel X20Cr13 / 1.4021 / 420S
Bonnet Gasket : Elastomer EPDM
Bonnet Screws : Stainless Steel X5CrNiMo17-12-2 / 1.4401 / 316
Vent Plug : Stainless Steel X20Cr13 / 1.4021 / 420S
Size : 2” - 20”
