Two PC Direct Mounting Full port Ball valve Stainless steel / Carbon Steel Flanged
  • Body & cap in ASTM A351-CF8M, ASTM-A351-CF8, ASTM-A216-WCB
  • Full port, solid ball/hollow ball
  • Face to face: ANSI B16.10
  • Flange: ANSI B16.5 class 150
  • Trim in AISI 316
  • Anti- static device, fire safe design
AP1 607 Fire Safe Approved

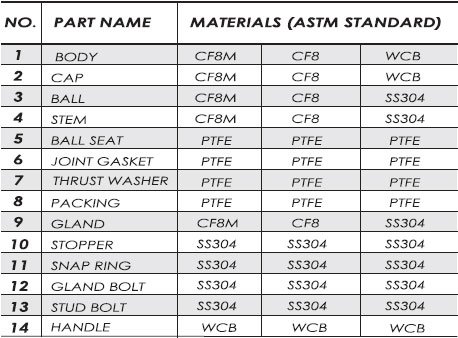

Spcification Table

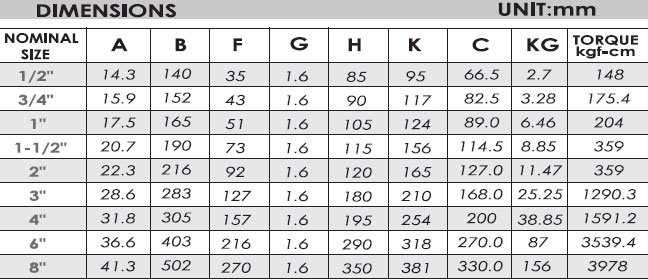

Dimension Table
