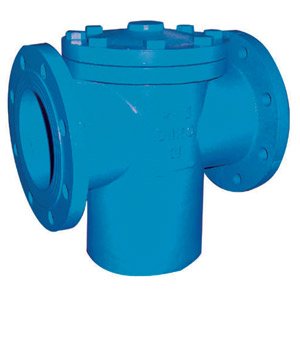

Basket Strainer
The Basket Strainer will screen and collect scale, rust, debris, in a large basket-shaped screen. Because of its shape, the flow through the strainer is virtually unobstructed, making it ideal for applications on heavily laden fluids.

Maximum Working Presure PFA: 16 bar / PN16
Working temperature: -10 to +120°C
Flange Type: EN 1092-2 PN10 & PN16
Coating: 250µm FBE coating, external and internal
Installation: Horizontal, Vertical - assembly in vertical or skew
position is possible only in case medium flow from up to down
Application:T o protect water installation. All particulate solids
higher than 1.5mm (DN50-80) and 3mm(DN100-600) are cleared.

Design Feature :

  • Fitted with a drain plug for easy routine cleaning
  • Heavy duty basket screen in 304 stainless steel
  • Full flow area, low pressure drop
  • Available in cast iron or ductile iron.

Description : Body : Ductile Iron EN-GJS-500-7/Cast Iron EN-GJS-250
Bonnet : Ductile Iron EN-GJS-500-7/Cast Iron EN-GJS-250
Strainer Screen : Stainless Steel X5CrNi18-10 /1.4301/304
Bonnet Gasket : Teflon / Graphite
Bonnet Screws : Stainless Steel A2-70
Vent Plug : Ductile Iron EN-GJS-500-7/Cast Iron EN-GJS-250

Size : 2” - 20”
