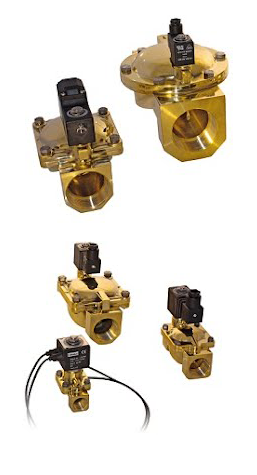

2/2 Way Solenoid Valves - Brass
Used in a wide variety of systems and different industrial areas that handle water, air, steam, light oils, neutral gases and cryogenic fluids, from vacuum to high pressure and high temperature.
Areas Used include:
Water Treatment Systems, Pneumatic Expellers, Automatic Petrol & Beverage Pumps, Irrigation, Water Fountains, Fire-Extinguisher Systems, liquid or Gas Dosing, Liquid Level Regulation, Packing Machines, Car Washing Machines, Building Exterior Cleaning Machines, Nickel Plating Process, Galvanization, Coffee Machines, Air Heating Systems, Hot Water, Steam, Hot Oils, Laboratory or Industrial Cryogenic Systems
Normally closed and normally open.
BSP or NPT threaded connections.
Material Specifications :
Valve body: Forged Brass
Enclosing tube: AISI 304 & 316 Stainless Steel
Plunger: AISI 430F St. Steel
Spring: AISI 302 St. Steel
Seals: NBR (Buna N) , EPDM, FKM (Viton)
Shading Ring: Copper, Silver or Aluminium

VITON : -10°C ~ 180°C
NBR : -15°C ~ 80°C
EPDM : -5°C ~ 130°C
Application : :
VITON - Fuel Oil, Gasoline, Diesel Fuel
NBR - Air Water, Neutral Gases, Mineral Oil
EPDM - Hot Water, Detergent Liquid
Size : 3/8" , ½" , ¾" , 1" , 1 ¼" , 1 ½" , 2", 2 1/2", 3"
Voltage : 12 VAC, 24 VAC, 24 VDC, 110 VAC, 220 VAC
